Product Details
Place of Origin: China
Brand Name: REXROTH
Certification: CE ISO 9001
Model Number: REXROTH A6VM28/A6VM55/A6VM80/A6VM107/A6VM160/A6VM200/A6VM250/A6VM355/A6VM500
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: NIGOTIATION
Packaging Details: standard box
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000/month
Usage: |
Oil,Hydraulic Piston Pump |
Appliion: |
Hydraulic System,hydraulic Pumps,exvaor |
Structure: |
Piston Pump,Hydraulic Pumps |
Power: |
Hydraulic |
Pressure: |
High Pressure |
Fuel: |
Hydraulic,oil |
Theory: |
Rotary Pump,hydraulic Pumps |
Standard Or Nonstandard: |
Standard |
Color: |
Customer's Request,customize |
Material: |
Cast Iron |
Product Name: |
Hydraulic Pumps |
Warranty: |
1 Year |
Condition: |
100%new,OEM New & Original |
Feature: |
High Efficiency,Long Life |
Type: |
Hydraulic Pump Rexroth |
Application: |
Hydraulic System |
Usage: |
Oil,Hydraulic Piston Pump |
Appliion: |
Hydraulic System,hydraulic Pumps,exvaor |
Structure: |
Piston Pump,Hydraulic Pumps |
Power: |
Hydraulic |
Pressure: |
High Pressure |
Fuel: |
Hydraulic,oil |
Theory: |
Rotary Pump,hydraulic Pumps |
Standard Or Nonstandard: |
Standard |
Color: |
Customer's Request,customize |
Material: |
Cast Iron |
Product Name: |
Hydraulic Pumps |
Warranty: |
1 Year |
Condition: |
100%new,OEM New & Original |
Feature: |
High Efficiency,Long Life |
Type: |
Hydraulic Pump Rexroth |
Application: |
Hydraulic System |

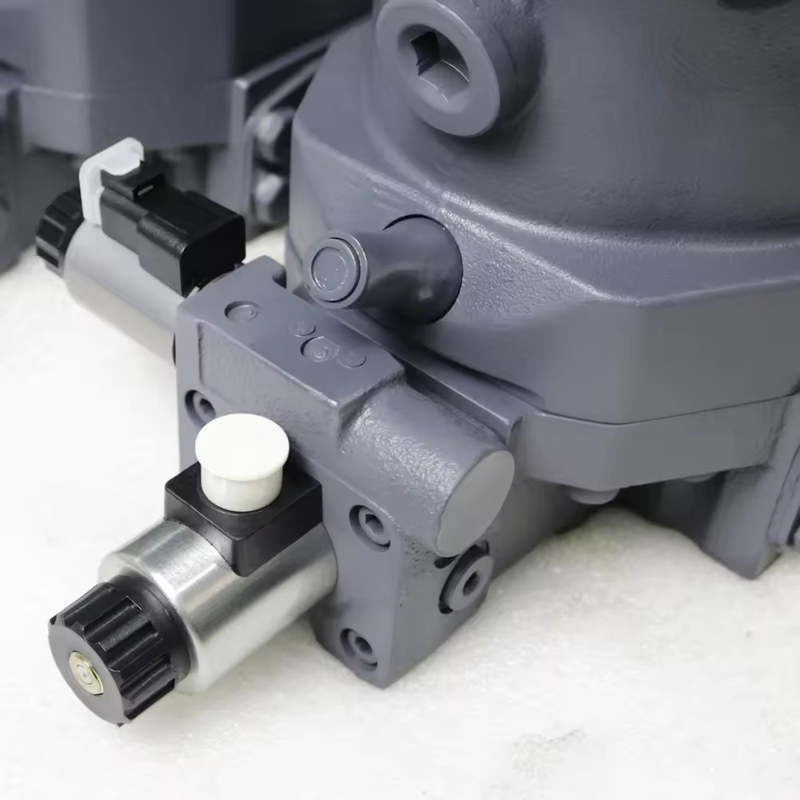

Rexroth piston pump
Plunger pump is an important device in hydraulic system. It relies on the reciprocating movement of the plunger in the cylinder block to change the volume of the sealing working cavity to achieve oil suction and pressure. The piston pump has the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment.
Feature of Brueninghaus Hydromatik Rexroth A6VM Piston Motor:
1. Variable displacement motor with axial piston rotary group of bent axis design,
2. for hydrostatic drives in open and closed circuits.
3. The motor is suitable for both mobile and industrial applications.
4. The wide control range of the variable displacement motor allows it to meet the requirements of high speed and high torque.
5. The displacement is infinitely variable in the range Vg max to Vg min = 0.
6. Output speed is proportional to flow and inversely proportional to displacement.
The output torque increases with the pressure drop between the high and low pressure sides and with increasing displacement.
Wide control range for hydrostatic drives.
Various control and regulating devices.
|
Name
|
A6VM Series axial piston variable motor
|
|
Series
|
A6VM
|
|
Displacement
|
28, 55, 80, 107, 140, 160, 200, 250, 355, 500, 1000.
|
|
Nominal Pressure
|
5800 psi (400 bar)
|
|
Maximum Pressure
|
6500 psi (450 bar)
|
|
Operation Mode
|
Open and Closed Circuit
|
|
Size
|
28
|
55
|
80
|
107
|
140
|
160
|
200
|
250
|
355
|
500
|
1000
|
|||
|
Series
|
63
|
65
|
65
|
65
|
65
|
65
|
65
|
63
|
63
|
63
|
63
|
|||
|
Displacement
|
Vg max
|
cm³
|
28.1
|
54.8
|
80
|
107
|
140
|
1260
|
200
|
250
|
355
|
500
|
1000
|
|
|
Vg x
|
cm³
|
18
|
35
|
51
|
68
|
88
|
61
|
76
|
205
|
300
|
417
|
1000
|
||
|
Vg min
|
cm³
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
||
|
Nominal pressure
|
pnom
|
bar
|
400
|
400
|
400
|
400
|
400
|
400
|
400
|
350
|
350
|
350
|
350
|
|
|
Maximum pressure
|
pmax
|
bar
|
450
|
450
|
450
|
450
|
450
|
450
|
450
|
400
|
400
|
400
|
400
|
|
|
Maximum speed
|
at Vg max1)
|
nnom
|
rpm
|
5550
|
4450
|
3900
|
3550
|
3250
|
3100
|
2900
|
2700
|
2240
|
2000
|
1600
|
|
at Vg < Vg x
|
nmax
|
rpm
|
8750
|
7000
|
6150
|
5600
|
5150
|
4900
|
4600
|
3300
|
2650
|
2400
|
1600
|
|
|
at Vg min
|
nmax 0
|
rpm
|
10450
|
8350
|
7350
|
6300
|
5750
|
5500
|
5100
|
3300
|
2650
|
2400
|
1600
|
|
|
Inlet flow2)
|
at Vg max and nnom
|
qV nom
|
l/min
|
156
|
244
|
312
|
380
|
455
|
496
|
580
|
675
|
795
|
1000
|
1600
|
|
Torque
|
at Vg max and pnom
|
M
|
Nm
|
179
|
349
|
509
|
681
|
891
|
1019
|
1273
|
1391
|
1978
|
2785
|
5571
|
|
Weight (approx.)
|
m
|
kg
|
16
|
28
|
36
|
46
|
61
|
62
|
78
|
100
|
170
|
210
|
430
|
|
| R902214664 | A6VM80DA1/63W-VZB02700B |
| R909604092 | A6VM80DA2/63W-VZB010B *SV* |
| R902214659 | A6VM80EP2/63W-VAB0200PB |
| R902214677 | A6VM80EP2/63W-VAB0270HB-Y |
| R902077487 | A6VM80EP2/63W-VAB027FPB |
| R902077485 | A6VM80EP2/63W-VAB027FPB-K |
| R902214660 | A6VM80EP2/63W-VXB0100TA-S |
| R902070606 | A6VM80EP2/63W-VXB010HA-S |
| R902214662 | A6VM80EP2/63W-VZB027HPB-S |
| R902214658 | A6VM80EP2/63W-VZB027HPB-S |
| R902121638 | A6VM80EP6/63W-VZB017PB |
| R902101416 | A6VM80EPX/63W-VAB017FXB-S |
| R902070517 | A6VM80EZ2/63W-VAB020WB |
| R902214676 | A6VM80EZ4/63W-VAB0270HB-Y |
| R902070604 | A6VM80HA1/63W-VPB020A |
| R902214663 | A6VM80HA1/63W-VZB02700A |
| R902602477 | A6VM80HA1/63W-VZB380A-K |
| R902121717 | A6VM80HA1/63W-VZB380A-K |
| R902214665 | A6VM80HA1/63W-VZB38800A |
| R902214674 | A6VM80HA1/63W-VZB38800A |
| R992002013 | A6VM80HA1R1/63W-VZB017A |
| R902204737 | A6VM80HA1R2/63W-VAB010DPA |
| R902214661 | A6VM80HA1R2/63W-VXB0170CA-S |
| R902214673 | A6VM80HA1T/63W-VZB38800A |
| R902214657 | A6VM80HA1U1/63W-VZB0170HA |
| R902214681 | A6VM80HA1U1/63W-VZB01X0HA-S |
| R902214656 | A6VM80HA1U1/63W-VZB01X0HA-S |
| R902070612 | A6VM80HA1U2/63W-VXB017A-S |
| R902035225 | A6VM80HA2/63W-XPB010A-S |
| R902126636 | A6VM80HA2R2/63W-VZB027TA |
| R902214666 | A6VM80HA2U1/63W-VAB0170HA |
| R987235263 | A6VM80HD1/63W-VZB020A |
| R902101393 | A6VM80HD2/63W-VAB010B |
| R902214679 | A6VM80XXXR2/63W-VXB0170CA-S |
| R902214680 | AA6VM80EP1/63W-VSC017HPA-S |
| R902214524 | AA6VM80EP1/63W-VSC5100HB-S |
| R902049479 | AA6VM80EP1/63W-VSC527B-S |
| R902130518 | AA6VM80EP1/63W-VSC527HB-E |
| R902070542 | AA6VM80EZ3/63W-VSC520DB-S |
| R902067798 | AA6VM80EZ3/63W-VSC520DB-SK |
| R902101433 | AA6VM80EZ4/63W-VSC520TB-ES |
| R902126734 | AA6VM80HA1T/63W-VSC520A-E |
| R902130689 | AA6VM80HA1U2/63W-VSC520A-E |
| R902024912 | AA6VM80HD1/63W-VSC510B-S |
| R902214675 | AA6VM80HD1/63W-VSC52000A |
| R909604902 | AA6VM80HD1X/63W-VSC527B-S |
