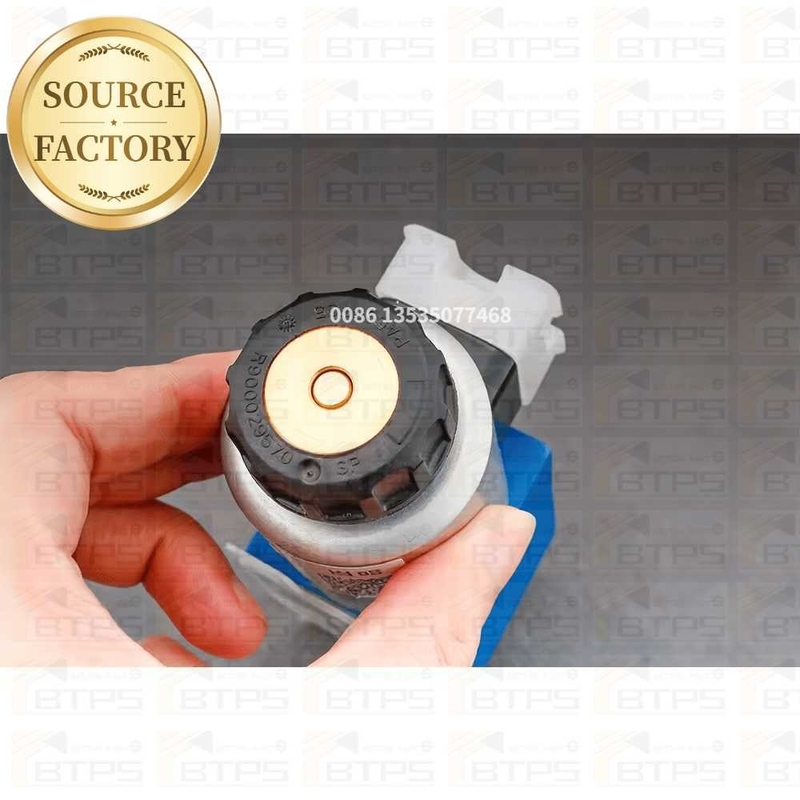

4WRE10E1-50-2X/G24K4/V Hydraulic Proportional Directional Valve 4WRAE 4WRAE6 4WRAE10 4WRA6 4WRA10 4WRE 4WREE 4WREE6

Hydraulic valve design principle

The design of the hydraulic valve is mainly for the design of the hydraulic valve group, and the oil circuit must be considered before the design of the hydraulic valve group. It is necessary to determine in advance which parts of the oil circuit can be integrated. The design of the oil circuit must be simple and save Go unnecessary steps. After determining the oil circuit, the main thing is the oblique hole and the process hole. These things in the oil path should be reduced. As long as it is enough, it is not necessary too much. Pay attention to the hole diameter in the design of the oblique hole and the process hole.

Rexroth hydraulic valve

A hydraulic valve is an automation component operated by pressure oil. It is controlled by a pressure distribution valve and pressure oil. It is usually used in combination with an electromagnetic pressure distribution valve. It can be used to remotely control the on and off of the oil, gas, and water pipeline

systems of hydropower stations. Commonly used for clamping, control,lubrication and other oil circuits.

There are direct-acting type and pilot type, and the pilot type is mostly used.

Rexroth 4WREE Series Proportional Directional Valves

Size 6, 10

Component series 2X

Maximum operating pressure 315 bar

Maximum flow 180 l/min

Features

– Actuation is by proportional solenoids with central thread and removable coil
– Electrical position feed-back
– For subplates: porting pattern to DIN 24 340 form A, ISO 4401, CETOP-RP 121 H, NFPA T3.5.1M R1, and ANSI B93.7 D 03, D 05 Subplates to SAARalog sheets RA 45 052 and RA 45 054 (separate order), see pages 15 and 16
– Spring centered control spool
– Model 4WREE, integrated valve electronics with interface A1and F1
– Control electronics for model 4WRE: electronic amplifier VT-VRPA2-1-1X in Eurocard format (separate order)

– Directly actuated controlled directional valve, with control spool and sleeve in servo quality
– Single-side operated, 4/4 fail-safe position in deactivated state
– Electric position feedback and integrated electronics (OBE), calibrated in the factory
– Electric port 6P+PE Signal input of differential amplifier with interface A1 ±10 V or interface F1 4...20 mA (Rsh = 200 Ω)
– Used for electro-hydraulic control systems in production and test plants

Type Code:
